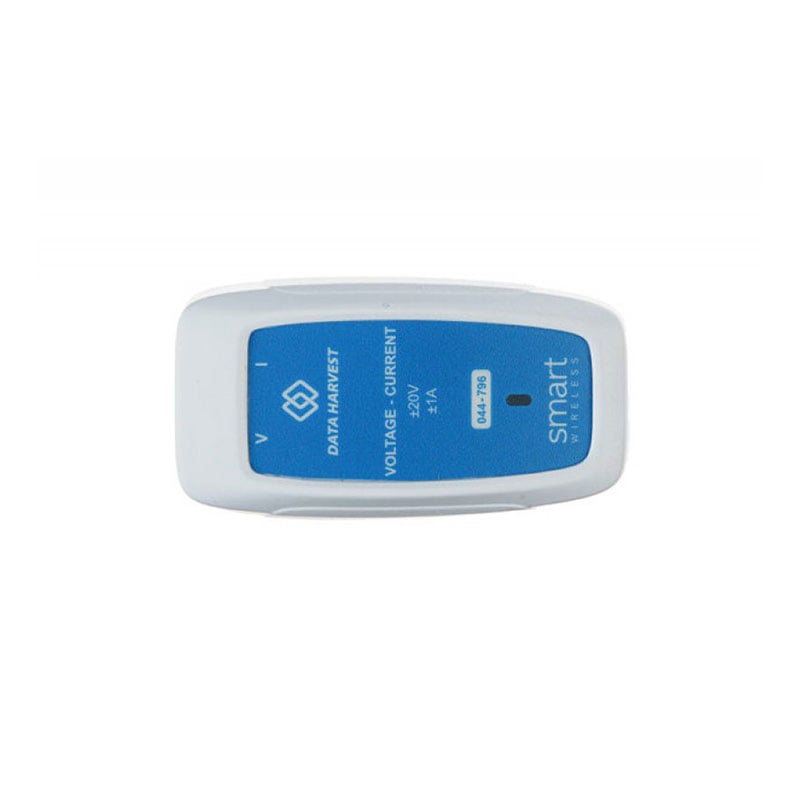

Data Harvest Wireless voltage and current sensor

This sensor is simultaneously a sensor for voltage and current combined in one package.
It can be used to measure both the electrical current and the potential difference in a component in low voltage AC or DC circuits.
The voltage sensor measures the difference in potential between two points in a chain in a range between -20 V to +20 V.
The current sensor measures the current running in a circuit in a range of -1 A to +1 A (± 1000 mA).

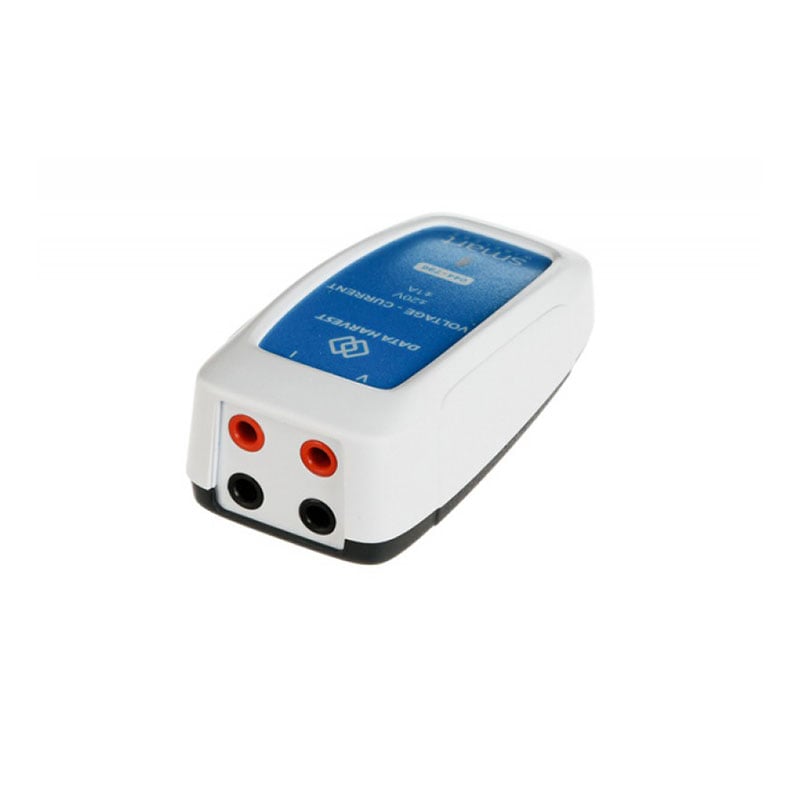

Use 4 mm plug wires (not included in the kit) to connect to most standard available electronic sets and school supplies.
Here are just a few examples of practical ideas that you can achieve using the wireless 20V voltage and current sensor:
- A point in the chains, (Kirkhoff's law);
- Sequencing and parallel circuits;
- Om's law;
-Quality and poor wires;
-Savers;
- Lamp tone;
-Haracteristics of electrical components;
-Dynamo effect;
-Induction of Faraday to current or voltage in winding;
-Dilution of capacitor, charge and stored energy;
-Diodes and diode vaporization;
-Change the impedance with frequency;
-Engine efficiency;
-Resonance in a consistent LCR chain;
-Reactive resistance and phase in capacitor.
You can see the user manual Here.
