NTL Hydrogen Kit, for students

În stoc

949.72 RON

Preț cu TVA inclus

949,72 RON

The set to demonstrate the principles of storage and conversion of energy through a fuel cell shall consist of:
-reversible fuel cell;
-gas storage block;
-sun panel;
-needed supplies for work;
- instructions.

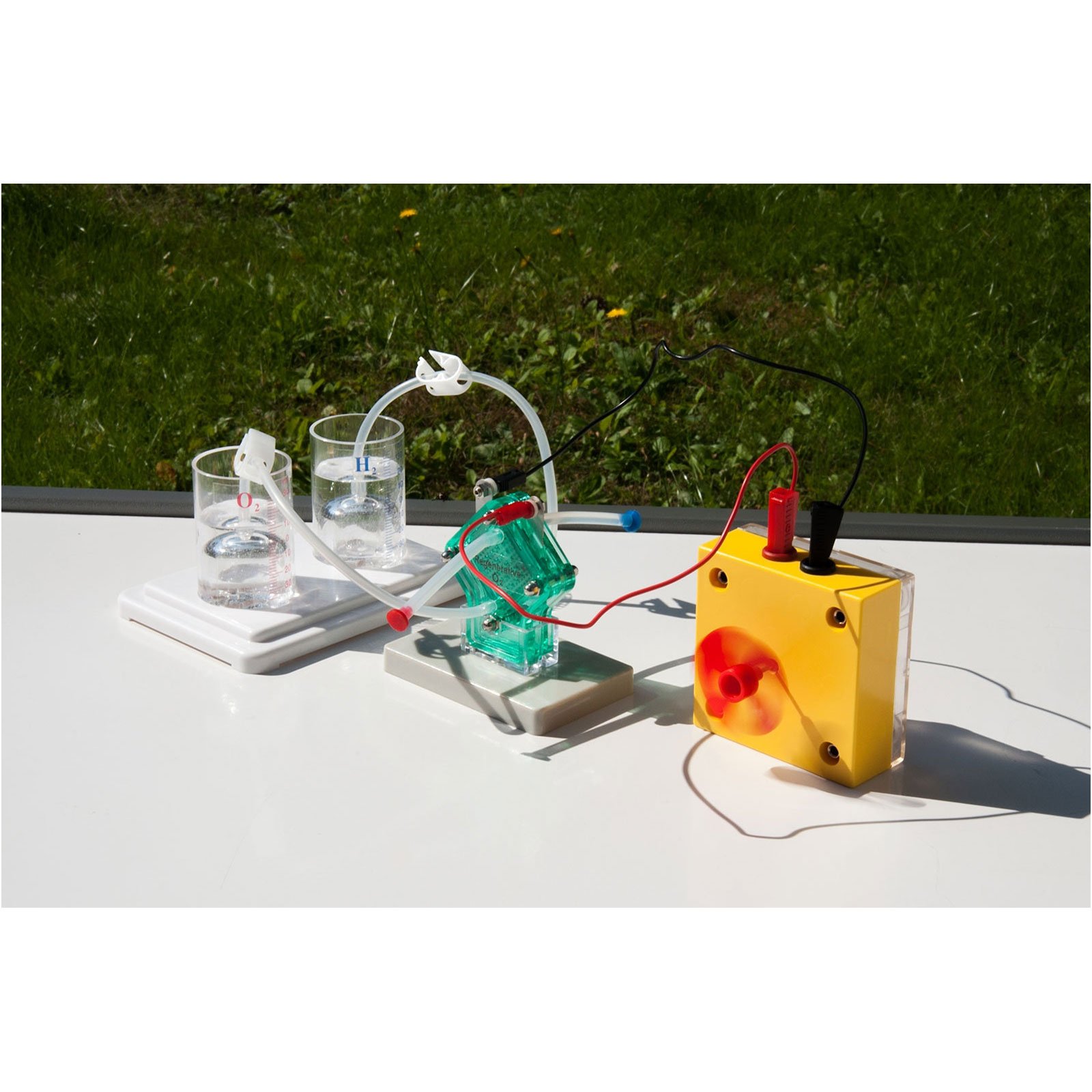

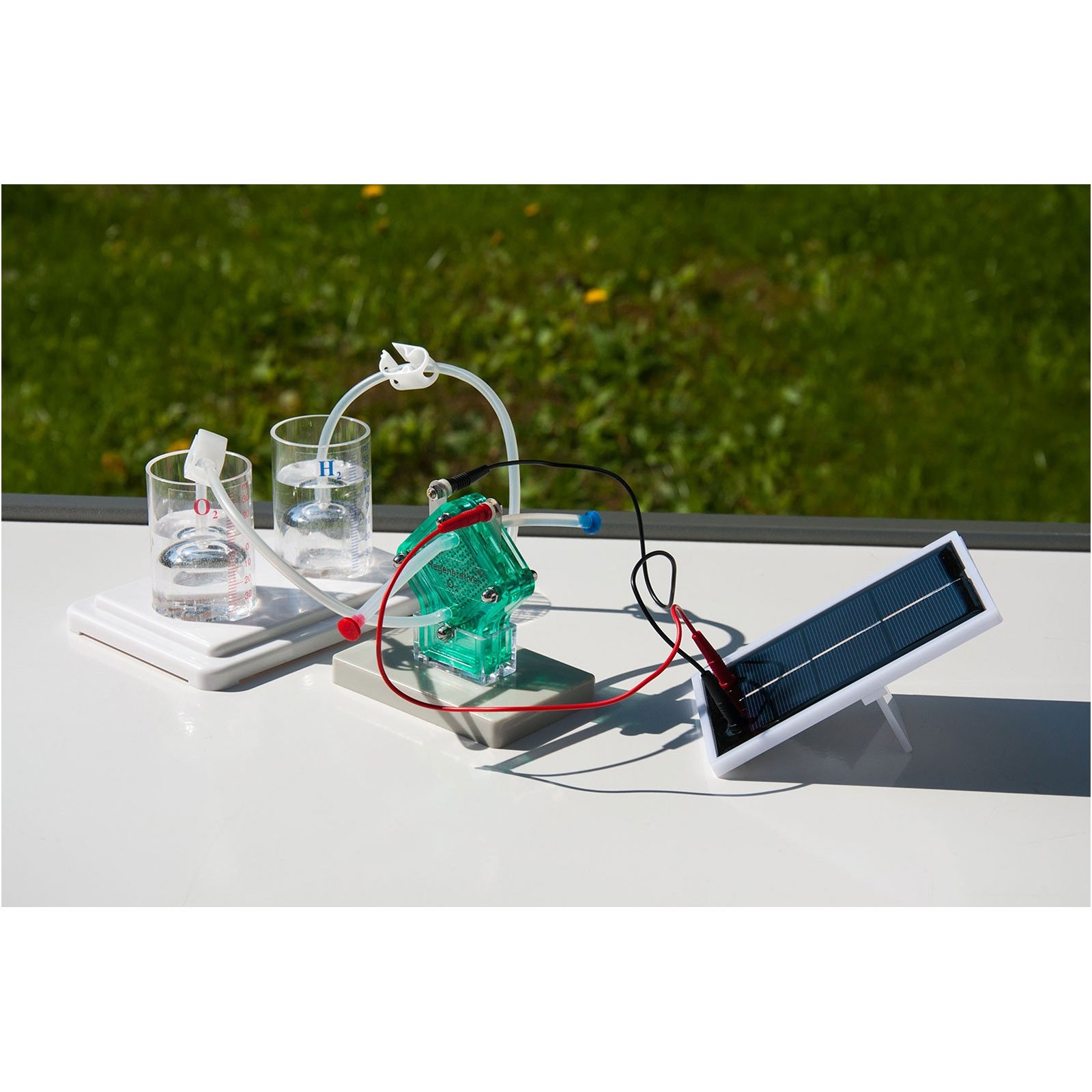

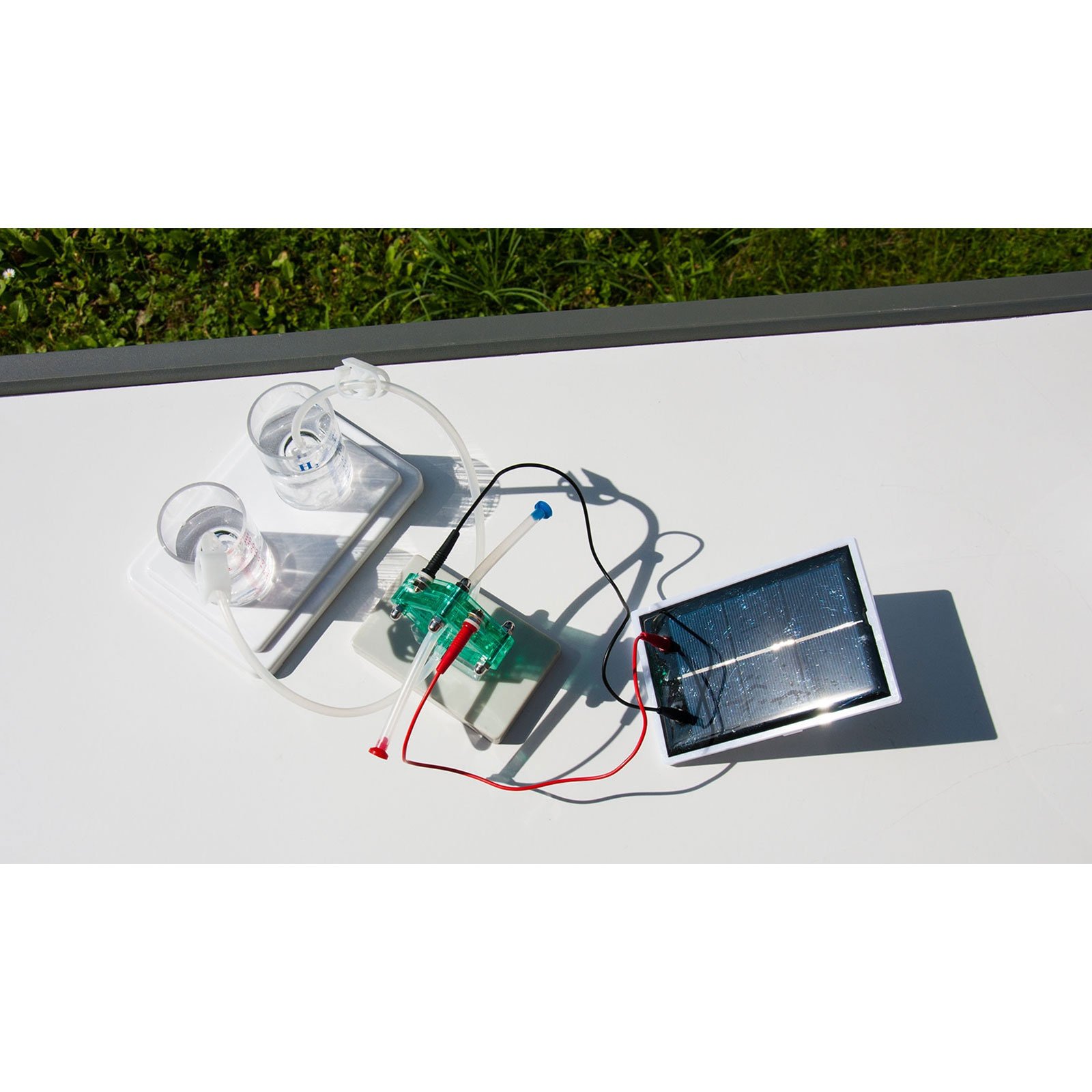

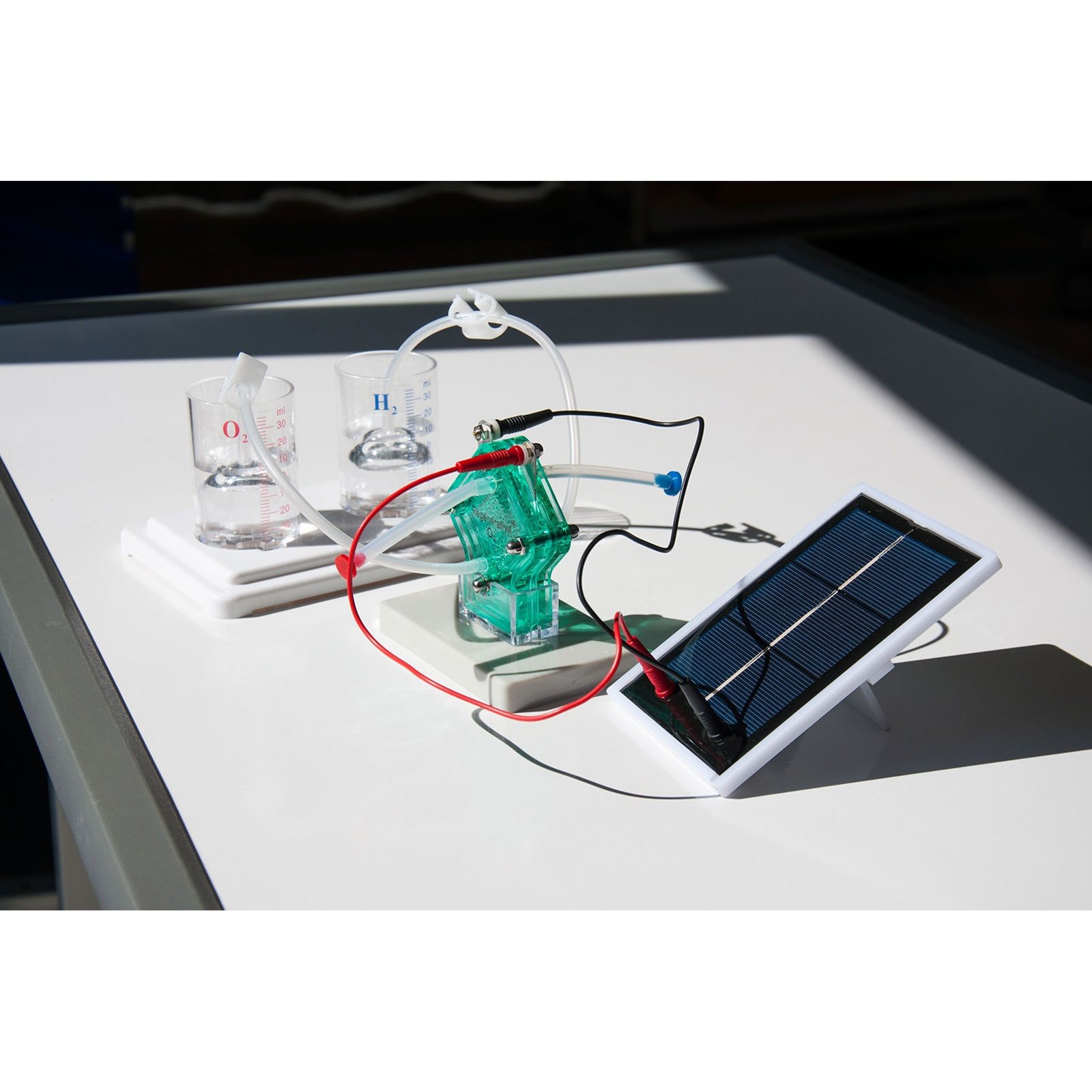

See how hydrogen is produced through an energy supply using a solar panel or external power supply (a battery compartment). The hydrogen produced can then be used by the fuel cell to drive low-power consumers.
Technical data of the fuel cell:
-power supply: 1.7 ... 3 V DC, 0 ... 0,7 A, H2;
-production: max. 5 ml/min;
- Output power: 0 ... 0.6 V DC, 0 ... 0.3 A (max. 180 mW);
-Size of the membrane: approx. 25 x 25 mm.
Weight of the whole set: approximately 364 g.
You can see the user manual Here,Here. And here.
